LENCO TRIM TAB KIT - SUPER STRONG - DUAL ACTUATOR
LENCO TRIM TAB KIT - SUPER STRONG - DUAL ACTUATOR
Regular price
$4,053.45 AUD
Regular price
Sale price
$4,053.45 AUD
Quantity
Couldn't load pickup availability
Description
Trim tab kit Lenco Super Strong 16x30 24v dual actuator no switch
Features

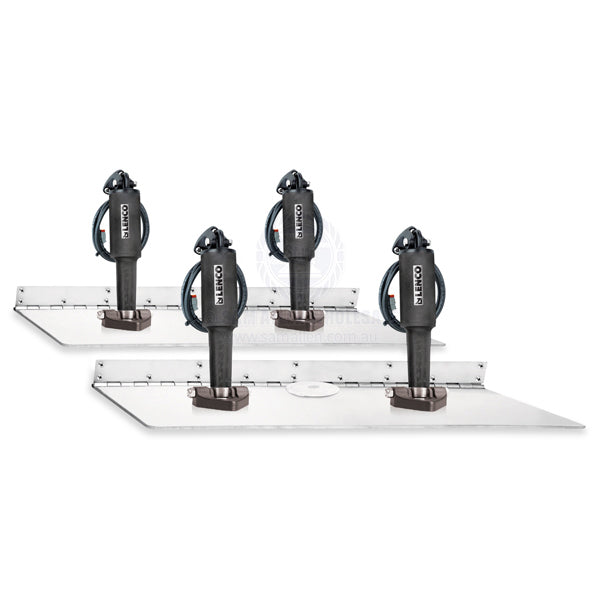

- Super Strong design is for sport fishing, large cruising and commercialvessels. This series has a completely flat blade design which reduces spray giving you a clean, dry ride. Boat lengths 35ft (10.6m) to 70ft (21.3m). Kit Includes:
- 2 x Super Strong Standard Mount Plates, 7 Gauge (4.6mm thick) laser cut 304G stainless steel with 3/8 inch (9.5 mm) diameter hinge pin.
- 4 x 101XD Actuators with 1.8m cable and Deutsch connectors.
- 1 x Set of stainless steel fasteners.
- 4 x Upper mounting bracket with gland seal.
- 4 x XD lower mounting bracket.
- 2 x Zinc anodes.
- Lenco owner’s installation manual.
- Compliance: CE Certified .
- 5 Year Warranty (Recreational Use).
Specifications
| Part No. | CMW-55472 |
|---|---|

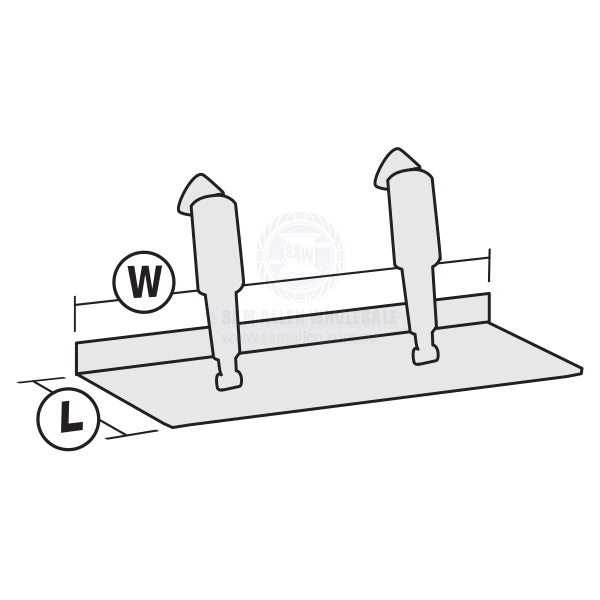

| Length | 16 inch (406mm) |
| Width | 30 inch (762mm) |
| Series | Super Strong Dual Actuator |
| Recommend Switch Kit | 55633 |
| Volts | 24V |
| Hinge Height | 50mm |
| Min. Transom Height | 356mm |
| Approx Boat Length | 12Mtr - 18Mtr |
| Finish | Matte |
| Note | Switches sold separately, use 55633 switch kit. Actuator extension harnesses sold separately (4 required), 20ft, 32ft or 40ft length are available. 24 Volt Option Available. |
