Coffs Metal Works

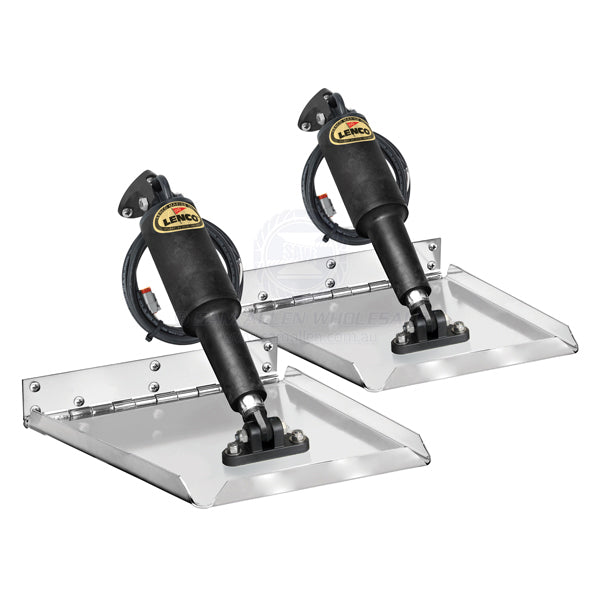

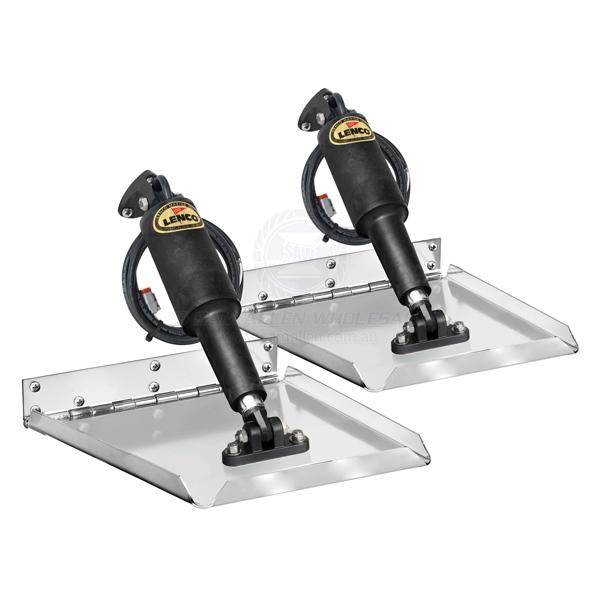

LENCO TRIM TAB KIT - TAPERED PLATE
LENCO TRIM TAB KIT - TAPERED PLATE
Regular price
$1,825.95 AUD
Regular price
Sale price
$1,825.95 AUD
Quantity
Couldn't load pickup availability
Description
Trim tab kit Lenco Tapered Plate 16x12 12v no switch polish plates
Features
- The upgraded trim plates with heavy-duty hinge pin makes these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits.

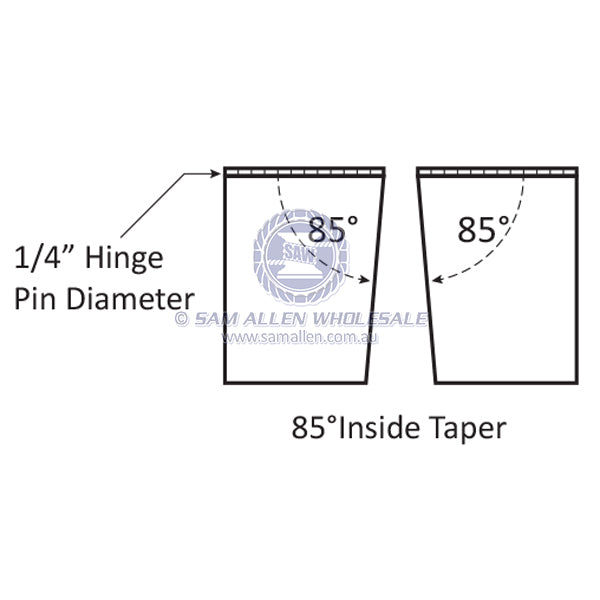

- Plates are Electropolished 12 gauge - 304G Stainless Steel with 1 inch turned up edges with an 85 degree inside taper and 1/4 inch diameter hinge pin.
- Equipped with electric actuators for precise control.
- Fully submersible with all Plug and Play Deutsch connections.
- Compliance: CE Certified .
- 5 Year Warranty (Recreational Use). Kit Includes:
- 2 x 12 gauge stainless steel Electropolished trim tab blades.
- 2 x 101 actuators with 6ft lead and Deutsch plugs.
- 2 x 20ft actuator extension wiring harnesses.
- 2 x Upper mounting bracket with gland seal.
- 2 x Lower mounting bracket.
- Standard Actuators with 5/16 inch Stainless Steel bolts.
Specifications
| Part No. | CMW-55469 |
|---|---|

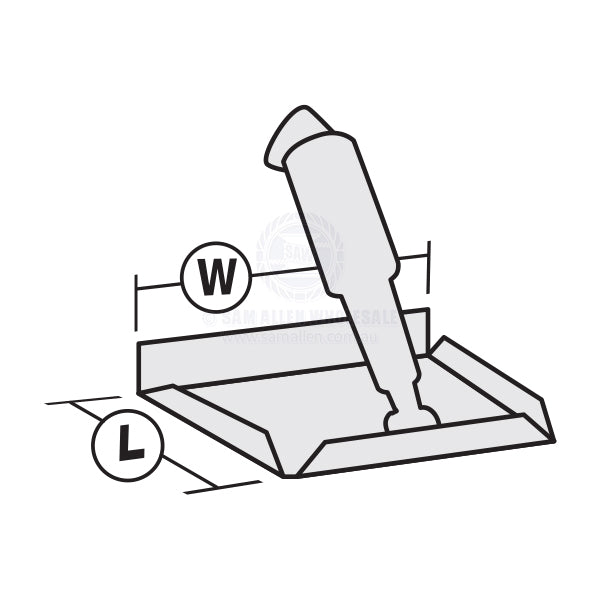

| Length | 16 inch (406mm) |
| Width | 12 inch (305mm) |
| Series | Tapered Plate |
| Switch | Not Included |
| Volts | 12V |
| Hinge Height | 51mm |

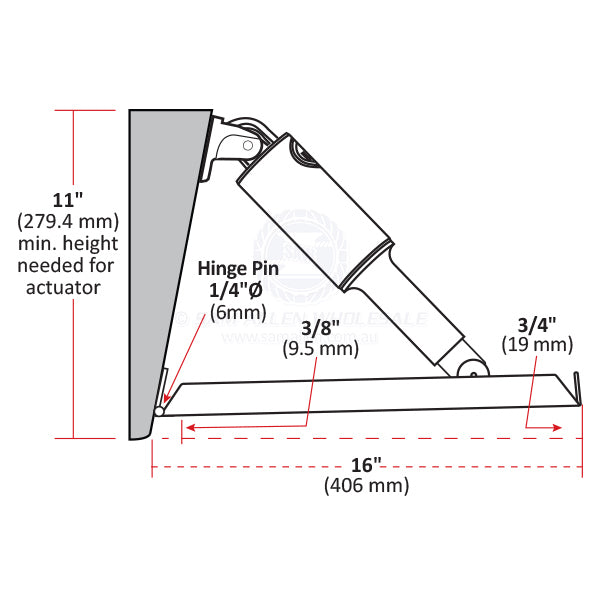

| Min. Transom Height | 279mm |
| Approx Boat Length | 5.8Mtr - 10.4Mtr |
| Finish | Electro Polished |
| Note | Switch kits sold separately. 24 Volt Option Available. |
