LENCO TRIM TAB KITS - EDGE MOUNT - STANDARD TACTILE SWITCH WITH BUILT-IN AUTO RETRACT

LENCO TRIM TAB KITS - EDGE MOUNT - STANDARD TACTILE SWITCH WITH BUILT-IN AUTO RETRACT

Regular price $1,860.95 AUD
Regular price Sale price $1,860.95 AUD
Sale Sold out
Quantity

Description

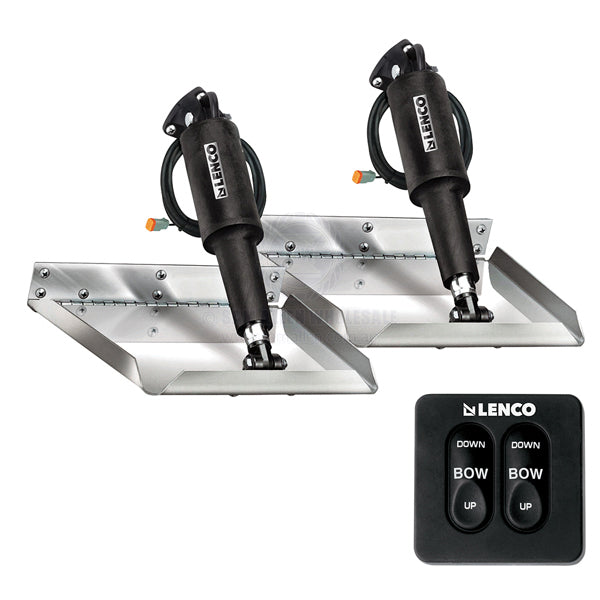

Trim tab kit Lenco Edgemount 12x12 12v tactile switch polish plates

Features

  • 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges with a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin.
  • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
  • 1 x Standard Tactile Switch Kit (Built-in retractor).
  • 2 x actuator extension wiring harness (6m) with Deutsch connectors.
  • 1 x set of stainless steel fasteners.
  • 2 x upper mounting bracket with gland seal.
  • 2 x lower mounting bracket.
  • Lenco owner’s installation manual.
  • 5 Year Warranty (Recreational Use).

Specifications

Part No. CMW-55417
Switch Kit Standard Tactile
Volts 12V

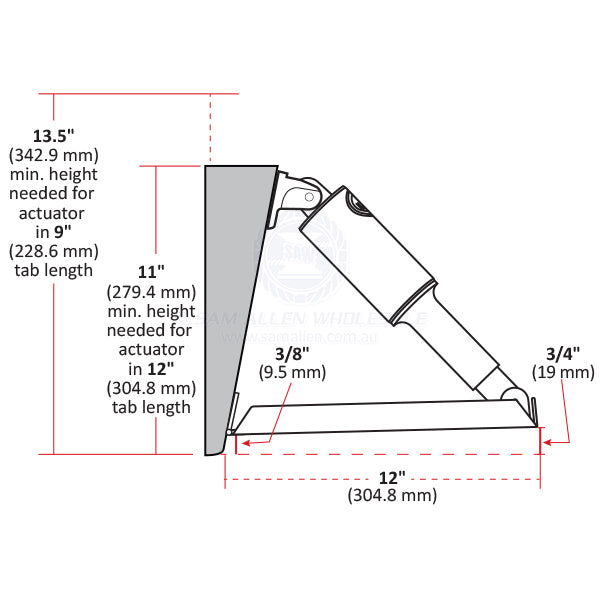

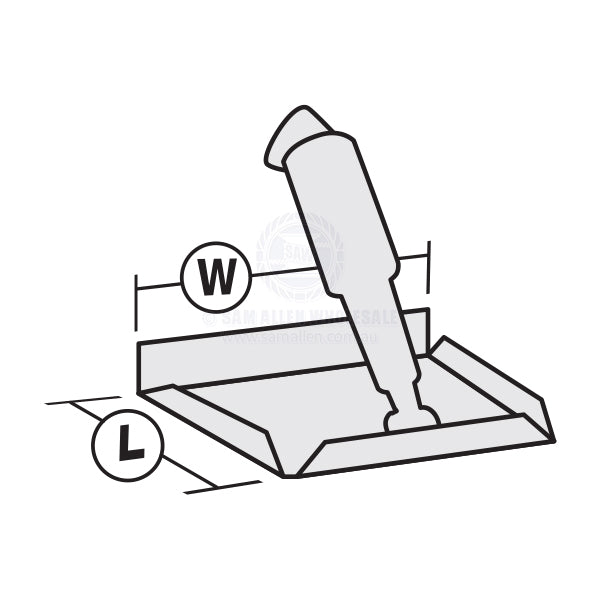

Size (L x W) 12 inch (305mm) x 12 inch (305mm)
Hinge Height 51mm
Min. Transom Height 279mm
Approx. Boat Length 5.2Mtr - 9.2Mtr
Finish Electro Polished
Note 24 Volt Option Available.
