Coffs Metal Works
MANSON ANCHORS - KEDGE ANCHOR (HHP) - GALVANISED
MANSON ANCHORS - KEDGE ANCHOR (HHP) - GALVANISED
Regular price
$2,974.15 AUD
Regular price
Sale price
$2,974.15 AUD
Quantity
Couldn't load pickup availability
Description

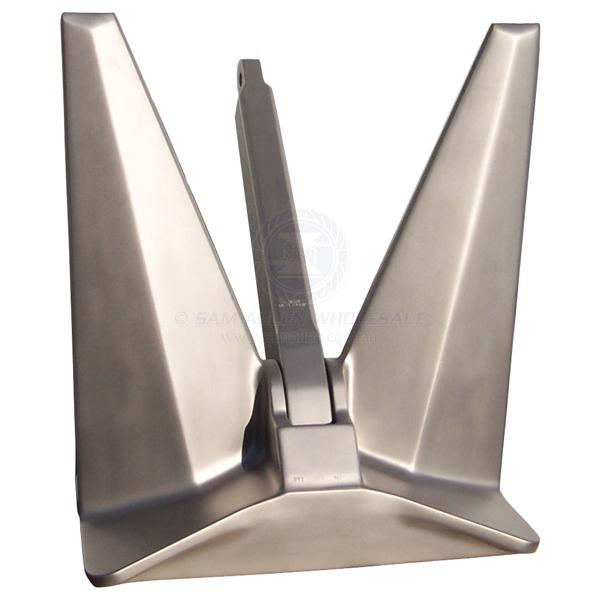

Anchor Manson Kedge galvanised 50kg (110lb)
Features
- Ideal for larger craft and specified by many of the world’s finest superyachts the Manson Kedge Anchor is manufactured within exacting standards to exceed all certifying requirements.
- Manufactured in both stainless steel and galvanised, these anchors perform exceptionally well on larger vessels.
- Traditionally stowed on either side of the bow on larger craft, these anchors can be a real showcase – housed in one of the most visible parts of a vessel. The Manson Kedge Anchor has been tested and proven all around the world.
- Manson Kedge Anchors are Lloyd’s Register Type Approved as HHP (High Holding Power). Buy-In Only (Enquire for pricing): Galvanised 124112 - Anchor Manson-Kedge 100Kg (220Lb) Galvanised 124113 Anchor Manson-Kedge 125kg (275LB) Galvanised 124114 Anchor Manson-Kedge 150kg (330LB) Galvanised 124115 Anchor Manson-Kedge 200kg (440LB) Galvanised Stainless Steel 124310 Anchor Manson-Kedge 50kg (110LB) S/S 124311 Anchor Manson-Kedge 75kg (165LB) S/S 124312 Anchor Manson-Kedge 100kg (220LB) S/S 124313 Anchor Manson-Kedge 125kg (275LB) S/S 124314 Anchor Manson-Kedge 150kg (330LB) S/S 124315 Anchor Manson-Kedge 200kg (440LB) S/S

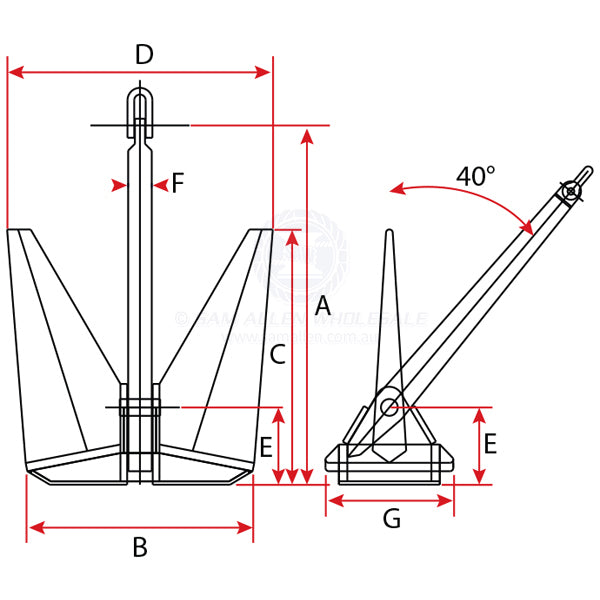

Specifications
| Part No. | CMW-124110 |
|---|---|
| Length | (A) 720mm |
| Width | (B) 430mm |
| Weight | 50kg (110LB) |
| Type | Galvanised |
| Fluke Length (C) | 510mm |
| Fluke Width (D) | 525mm |
| Crown (E) | 155mm |
| Shank Width (F) | 10mm |
| Depth (G) | 255mm |
| Note | Manson Kedge Anchors are buy-in only (lead time approx. 16 weeks). Also available in sizes 100kg to 200kg - POA. Manson produces 5 styles of Superyacht anchors of which the Kedge is the most popular design. |
