Natural Trailer Solid Axle 40mm Square 64", 1625mm Tip to Tip. 1000Kg Suit LM Bearings

1000KG RATED NATURAL FINISH 40MM SQUARE SOLID TRAILER AXLE

SUITS LM (holden) BEARINGS

1625MM TIP TO TIP. 1525MM HUB FACE TO HUB FACE

Upgrade your trailer with the Coffs Metal Works Natural Trailer Solid Axle, designed for a perfect fit with LM67048 & LM11949 bearings. This 40mm square axle, measuring 64 inches or 1625mm tip to tip, is a robust addition for any small to medium trailer, boasting a load rating of 1000KG. It comes in a natural finish with machined stub ends, ensuring a smooth assembly process. Made from durable C1045 steel, the axle is accompanied by axle nuts, washers, and split pins for secure installation.

AXLE LENGTH TIP TO TIP: 1625MM

AXLE LENGTH HUB FACE TO HUB FACE: 1525MM

TO SUIT BEARINGS: LM67048/10 INNER & LM11949/10 OUTER

AXLE RATING: 1000KG

AXLE SOLID OR HOLLOW: SOLID

STEEL MATERIAL: HIGH QUALITY C1045 GRADE

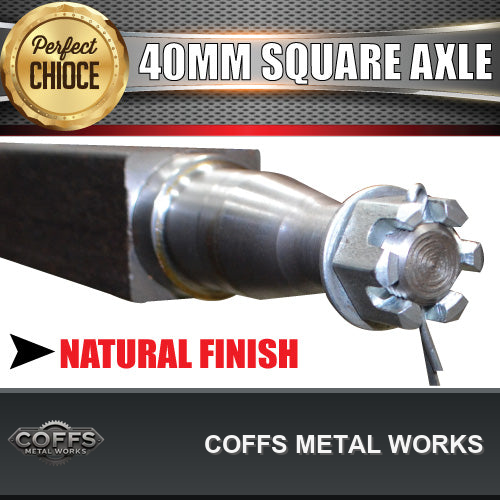

AXLE FINISH: NATURAL FINISH WITH MACHINED STUB ENDS

TRAVEL PROTECTION:  COMES WITH PROTECTIVE TRAVEL COVERS TO AVOID DAMAGE OR SURFACE RUST TO STUB ENDS

SUITED TO TRAILERS: SMALL TO MEDIUM

IF YOU HAVE A HUB FACE TO HUB FACE MEASUREMENT ADD 100MM AND THAT WILL GIVE YOUR OVER ALL LENGTH MEASUREMENT
