Coffs Metal Works

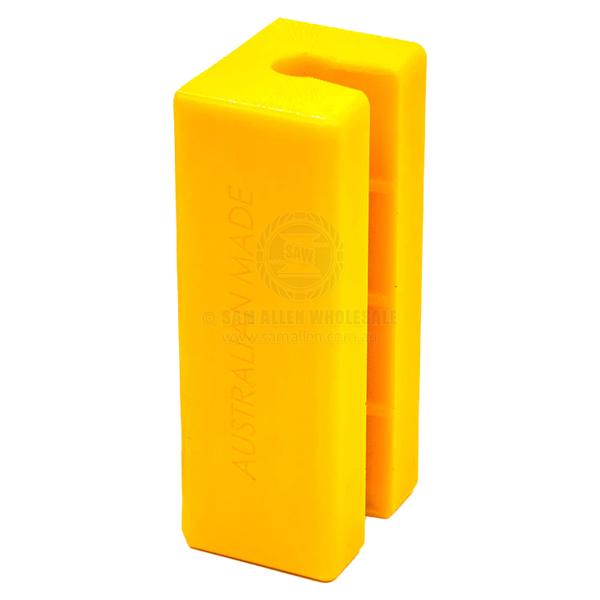

OUTBOARD TRIM / TILT BLOCK - SCB - LARGE
OUTBOARD TRIM / TILT BLOCK - SCB - LARGE
Regular price
$102.00 AUD
Regular price
Sale price
$102.00 AUD
Quantity
Couldn't load pickup availability
Description
Outboard trim & tilt support block SCB large yellow
Features
- Four locking internal tabs to clip over tilt shaft
- Machined ends to allow for extra grip
- Material polyurethane which is weather resistant
- Can be cut shorter to suit application
- Has been tested up to 300hp 4-stroke outboards.
- We have done multiple trips, short and long distances (if travelling long distances, would recommend additional trailer to outboard support bracket)
- It out performs the softer EPDM rubber tilt support that the competition has. Polyurethane is slightly harder and less resistant to losing shape under load and will support more weight.
Specifications
| Part No. | CMW-84289 |
|---|---|
| Length | 160mm |
| Width | 70mm |
| Height | 55mm |
| Shaft Dia. | 19mm |
| Material | Polyurethane |
| Colour | Yellow |
| Unit Qty | 1 |
| Note | Remove Trim/Tilt Block before launching boat. |
Share
