RELAXN MAKO SERIES ROD/CUP HOLDER - STAINLESS STEEL - CONCEALED MOUNT

RELAXN MAKO SERIES ROD/CUP HOLDER - STAINLESS STEEL - CONCEALED MOUNT

$170.60 AUD

$170.60 AUD

Sale Sold out

Description

Rod & cup holder Relaxn 316G SS flush mount 30° tube hidden bolts

Features

316G cast stainless steel, mirror polished.
Dual purpose, rod or cup holder.
Low profile streamlined design when installed.
Stainless steel 6mm gimbal pin.
Flush mounting style, 1/4 inch UNC bolts welded to the underside of the flange with washer and nyloc nut.
Black PVC insert to protect rods.
12.5 mm O.D drain.

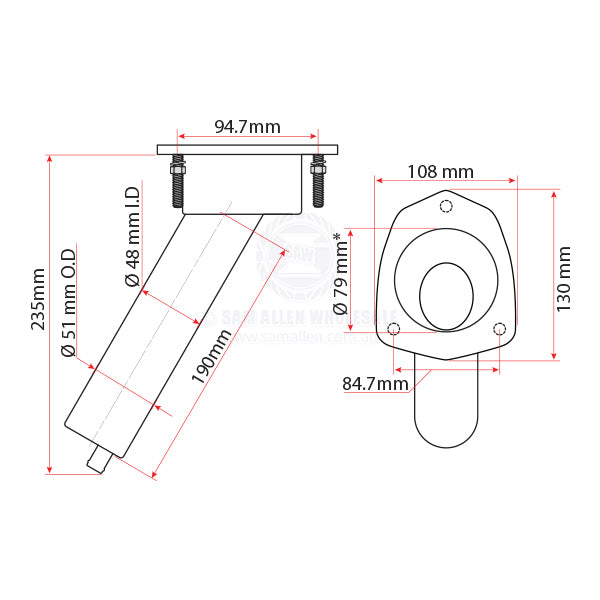

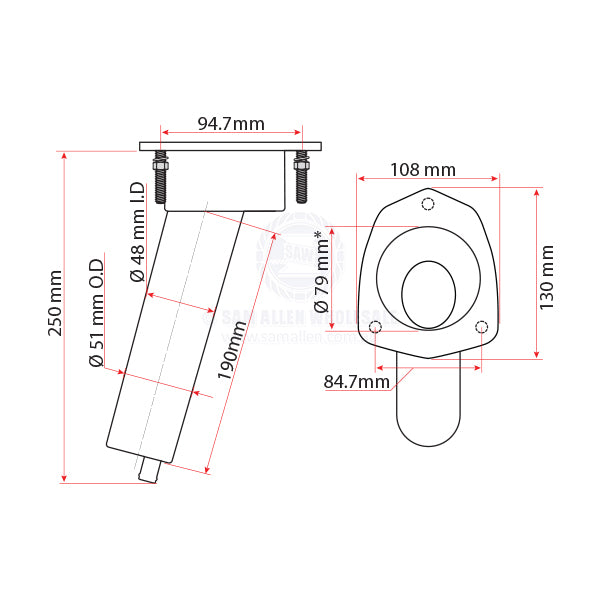

Specifications

Part No.	CMW-49458
Type	Stainless Steel
Shaft Angle	30°
Flange (W x L)	108mm x 130mm
Cup Dia.* / Depth	79mm* / 45mm
Overall Depth	235mm
Shaft Length	190mm
Shaft O.D. / I.D.	51mm / 44mm
Mount Type	1/4 inch UNC
Cut-Out	86mm
Unit Qty	1
Note	* Suits all coolers 79mm in diameter, suits some Yeti coolers. Please check the diameter of your cooler.
