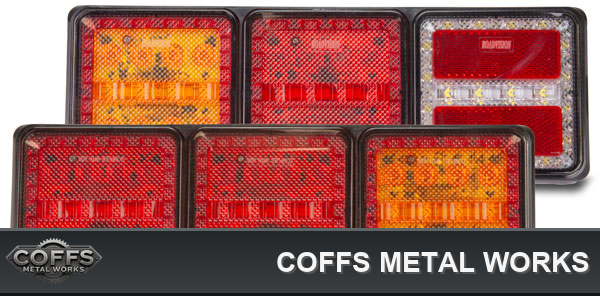

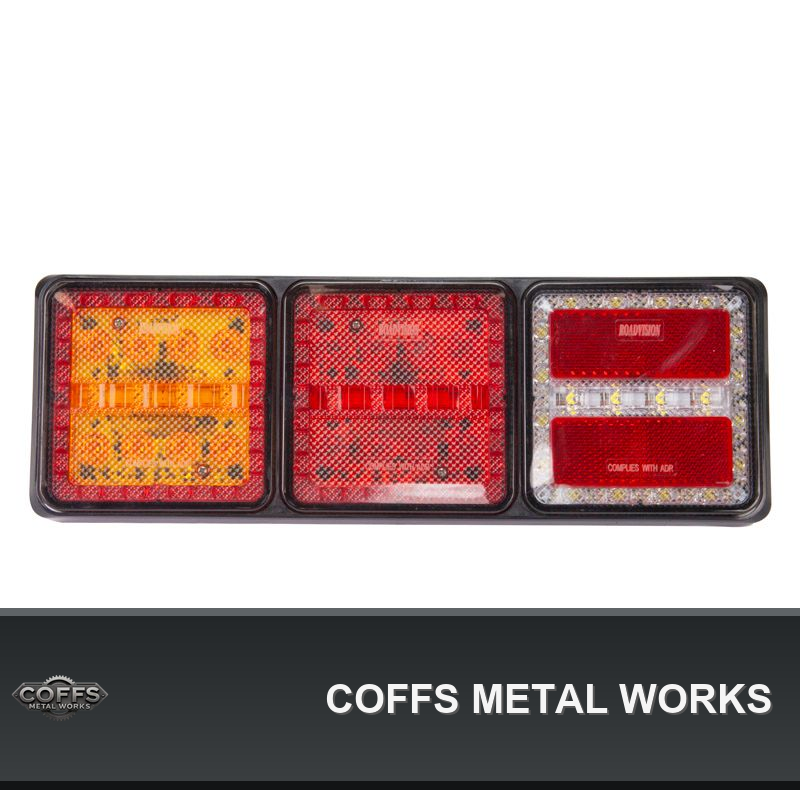

Roadvision BR282ARW LED Stop/Tail/Ind/Rev Lamp Trailer Truck 10-30V Mini Jumbo

ROADVISION TRIPLE COMBINATION LAMPS

BR282 SERIES

ROADVISION’s new BR282 Series LED triple combination lamps deliver the durability of maintenance free LED technology and provide greater visibility for increased safety with minimum current draw. Constructed with durable polycarbonate lenses and high impact ABS housings, the BR282 Series will survive the toughest environments. Designed with a simple surface mount design, they are dust & water proof to IP67 and totally maintenance free, with a life span rated at 100,000 hours. ROADVISION’s new BR282 Series is a complete FIT and FORGET Solution.

PRICE IS FOR 1 X BR282ARW LIGHT

FEATURES:

Retro reflector incorporated into lens

Multi-volt 10-30V DC input & low current draw

100,000 hour rated LED lifespan with solid state technology

Water & dust proof

Sealed polycarbonate lens & high impact ABS housing

Maintenance free

Simple surface mount design

ADR/ECE approved for all functions

RANGE SPECIFICATIONS

Description: Triple Combination Lamp

Functions: Stop/Tail/Indicator

Voltage Input: 10-30V DC

Number of LED's: Indicator - 12 LED’s, Stop - 24 LED’s, Tail - 60 LED’s

Current Draw Amps, Ind - 0.1 @13.8V, S/T - 0.1/0.05A @ 13.8V, Rev - 0.1A @ 13.8V

Dimensions 282 x 95 x 30mm

Lens Construction: Polycarbonate

Housing Construction: High Impact ABS

Mounting Type: Surface Mount

Mounting Hole /Cut Out: 120mm Stud Centres

Cable Length: 300mm Tinned Copper LEDLink Connector

Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow, Reverse – Black

ADR Approved

CTA Approved
