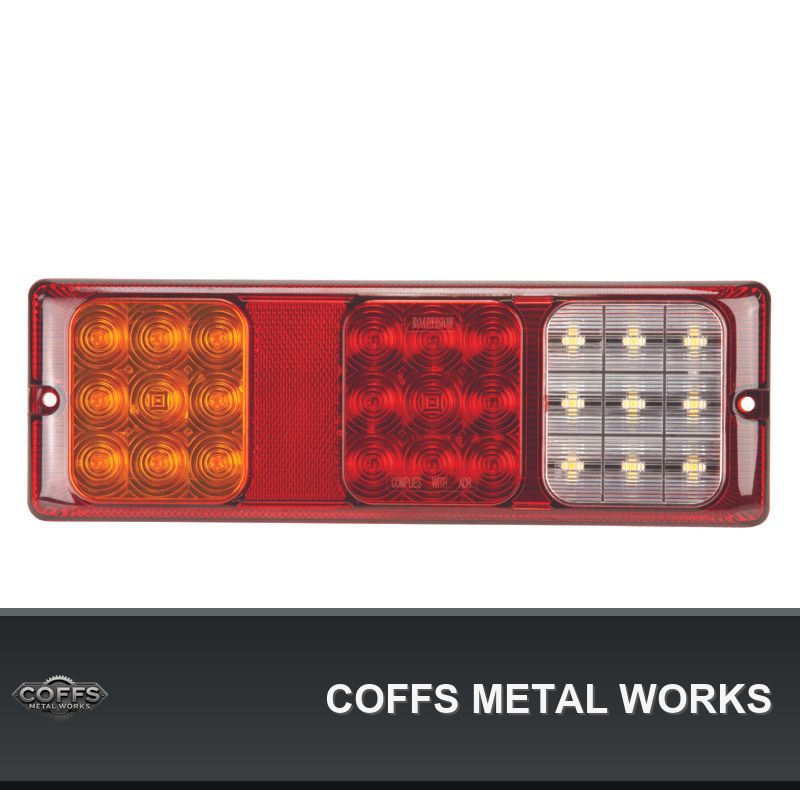

Roadvision BR310ARW LED Stop/Tail/Ind/Rev Slim Light Lamp Trailer Truck 10-30V

ROADVISION TRIPLE COMBINATION LAMPS

BR310 SERIES

ROADVISION’s BR310 Series LED combination lamps are a simple DIY vehicle/trailer lighting solution. Measuring only 21mm thick, they are designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology providing greater visibility and increased safety. BR310’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR310 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with a durable polycarbonate lens and housing, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.

PRICE IS FOR 1 X BR310ARW LIGHT

RANGE FEATURES

Multi-volt 10-30V DC input & low current draw

Brighter than conventional incandescent systems

100,000 hour LED life span with solid state technology

Maintenance free

Sealed polycarbonate lens & housing

Water and dust proof

Supplied pre-wired with 300mm LEDLink Connector

Super thin 21mm housing

Simple surface mount designs

ADR/ECE approved for all functions

RANGE SPECIFICATIONS

Description: Rect Stop/Tail/Ind/Rev/Ref Combination Lamp Triple Module

Functions: Stop/Tail/Indicator/Reflector/Reverse

Voltage Input: 10-30V DC

Number of LED's: Stop/Tail - 12 LED's, Indicator - 12 LED's, Reverse - 12 LED's

Current Draw Amps, Indicator - 9 LED’s, Stop/Tail - 9 LED’s, Reverse - 9 LED’s

Dimensions 300x100x21mm

Lens Construction: Polycarbonate

Housing Construction: Polycarbonate

Mounting Type: Surface Mount

Mounting Hole Centre: 280mm hole centres

Cable Length: 300mm Sheathed

ADR Approved

CTA Approved
