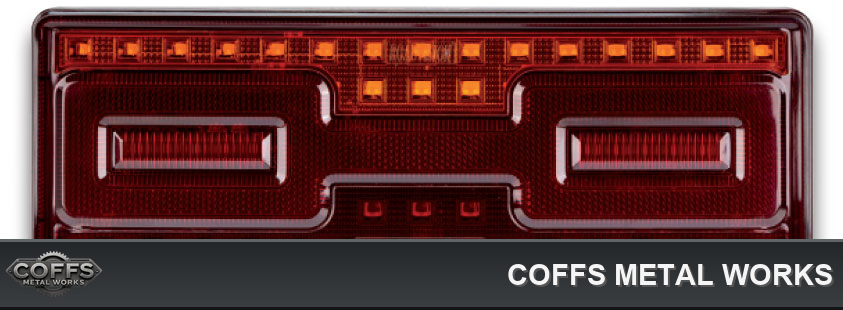

Roadvision LED Rear Combination Tail Light 276x101mm Stop/Tail/Ind/Ref BR276

ROADVISION TRIPLE COMBINATION LAMPS

BR276 SERIES

ROADVISION’s BR276 Series triple combination trailer lamps are the complete all-in-one fit and forget solution with Stop / Tail, Indicator & Reflector all in the one lamp. Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety.  The BR276 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.

price is for 1 light

FEATURES:

Compact LED combination lamp

10-30V DC input & low current draw

Brighter than conventional incandescent systems

100,000 hour LED life span with solid state technology

Maintenance free

High impact ABS housing & sealed polycarbonate lens

Waterproof

Pre-wired with 300mm of sheathed tinned copper cable

Simple surface mount design

ADR/ECE approved for all functions

RANGE SPECIFICATIONS

Description: Rectangle Triple Combination

Functions: Stop/Tail, Indicator & Reflector

Voltage Input: 10-30V DC

Number of LED's: Indicator - 18 LED's, Stop/Tail - 18 LED's

Current Draw Amps, Ind - 0.05A @ 13.8V, S/T - 0.2/0.05A @ 13.8V

Dimensions AxBxC: 276x101x24mm

Lens Construction: Polycarbonate

Housing Construction: High Impact ABS

Mounting Hole Centre: 220mm Stud Centres

Cable Length: 250mm Tinned Copper

Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow

ADR Approval: Ind - CRN 50238, Stop - CRN 50236, Tail - CRN 50237, Ref - CRN 50247

CTA Approval: CTA-061013
