Roadvision LED Rear Combination Trailer Light Surface Mount 100x100mm BR208LR 12V

Name: Roadvision LED Rear Combination Trailer Light Surface Mount 100x100mm BR208LR 12V
Brand: Coffs Metal Works
SKU: 191631093645
Price: 42.00 AUD
Availability: InStock

$42.00 AUD

Sale Sold out

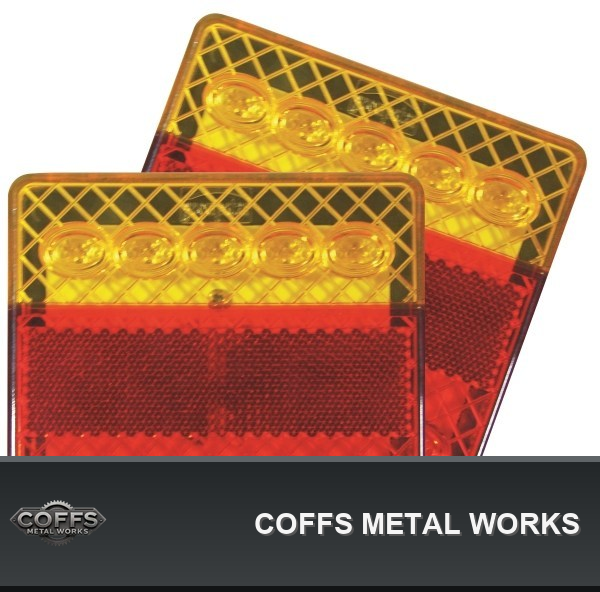

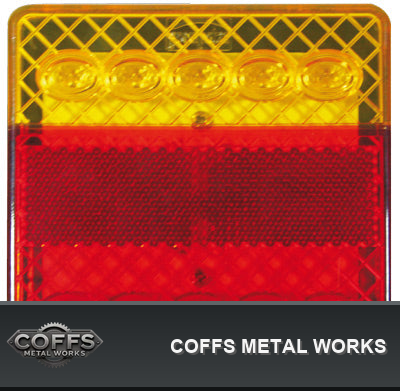

Roadvision LED Rear Combination Trailer Light Surface Mount 100x100mm BR208LR 12V

ROADVISION COMBINATION LAMPS

BR208 SERIES

X2 COMBINATION LIGHTS

ROADVISION’s BR208 Series LED rear combination lamps tick all the boxes! A simple DIY trailer lighting kit designed for the budget conscious consumer, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR208 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. Fitment is also made easy with integrated twin mounting studs and stainless steel hardware. With ROADVISION it’s FIT & FORGET.

FEATURES – LAMP KIT

BR208LR

Compact LED combination lamp

12V DC input & low current draw

100,000 hour rated LED lifespan with solid state technology

Water & dust proof (submersible)

Sealed polycarbonate lens & housing

Integrated reflector & optional licence plate lamp

Pre-wired with 300mm sheathed tinned copper cable

Easy surface mount stainless steel twin stud installation

Maintenance free

ADR/ECE approved for all functions

RANGE SPECIFICATIONS

Description: Square Stop/Tail/Ind/Ref Twin Pack

Functions: Stop/Tail & Indicator

Voltage Input: 12V DC

Number of LED's: Indicator - 5 LED's, Stop/Tail - 5 LED's

Current Draw Amps, Ind - 0.09A @ 13.8V, S/T - 0.09/0.02A @ 13.8V

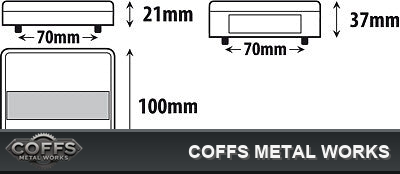

Dimensions 100x100x21mm

Lens Construction: Polycarbonate

Housing Construction: Polycarbonate

Mounting Hole Centre: 70mm Stud Centres

Cable Length: 300mm Tinned Copper

Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow

ADR Approved

CTA Approved

GUARANTEED WITH A 5 YEAR WARRANTY

Specifications

Features	LAMP KIT
Pre	wired with 300mm sheathed tinned copper cable
Description	Square Stop/Tail/Ind/Ref Twin Pack
Functions	Stop/Tail & Indicator
Voltage Input	12V DC
Dimensions	100x100x21mm
Lens Construction	Polycarbonate
Housing Construction	Polycarbonate
Mounting Hole Centre	70mm Stud Centres
Cable Length	300mm Tinned Copper
Wiring Colour Codes	Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow
Suitable For	the budget conscious consumer, delivering the durability of maintenance free LED technology and greater visibility providing increased safety
Suitable For	& FORGET
Mentioned Sizes	0.09A, 13.8V, 0.02A
