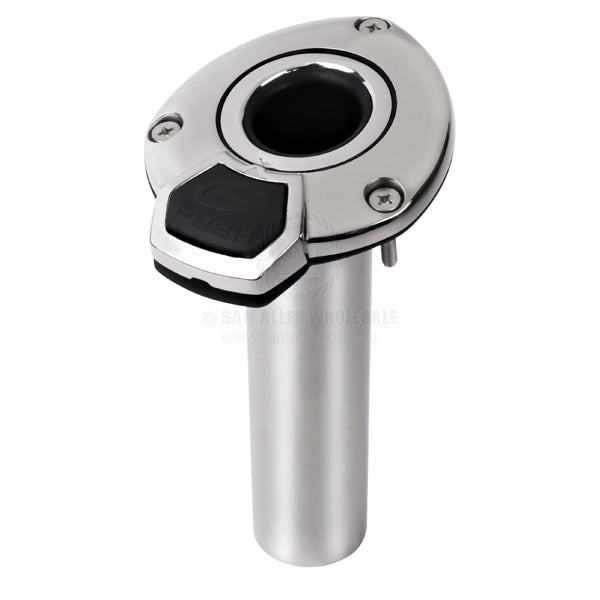

ROD HOLDER - 15° BLUEWATER - ROTATING - STAINLESS STEEL

ROD HOLDER - 15° BLUEWATER - ROTATING - STAINLESS STEEL

$279.00 AUD

$279.00 AUD

Sale Sold out

Description

Rod holder 316G SS Exploding Fish Bluewater rotating 15° flush mount

Features

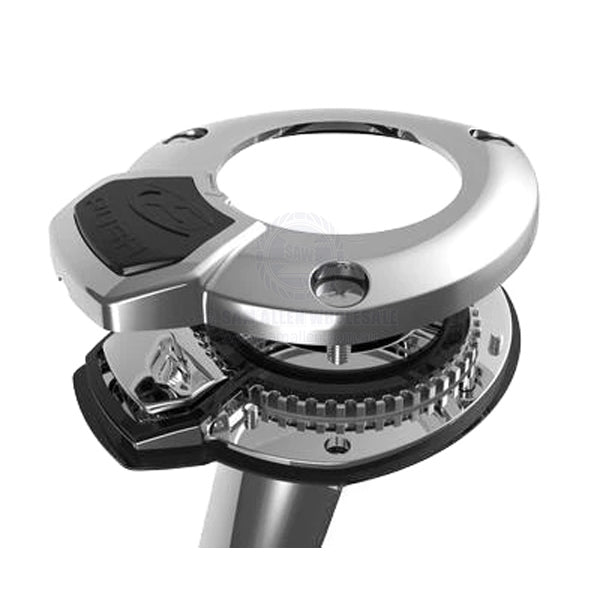

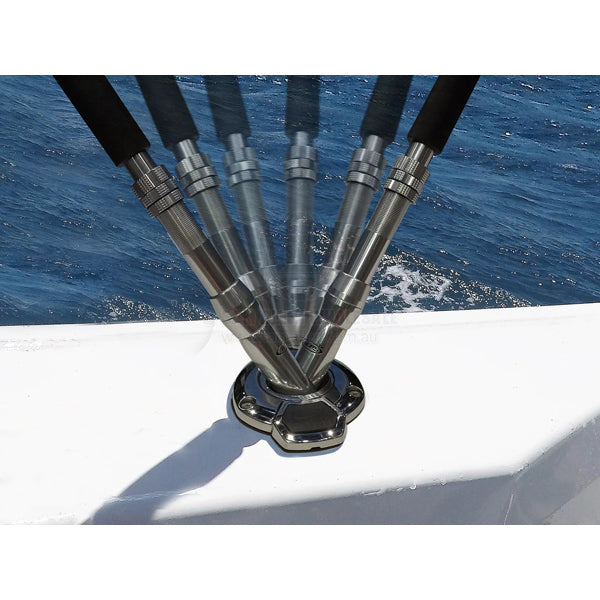

360° rotation with locking position in 5° increments.
Cast 316G stainless steel gear head TIG welded to the rod sleeve.
Cast 316G stainless steel base plate.
Injection moulded polyethylene top and bottom bearing.
Cast 316G stainless steel top cover.
Rubber mounting gasket.
TIG welded 6mm stainless steel gimbal pin.
316G stainless steel locking lever.
Rubber locking lever cover.
316G stainless steel pivot pin.
316G stainless steel mounting hardware included.

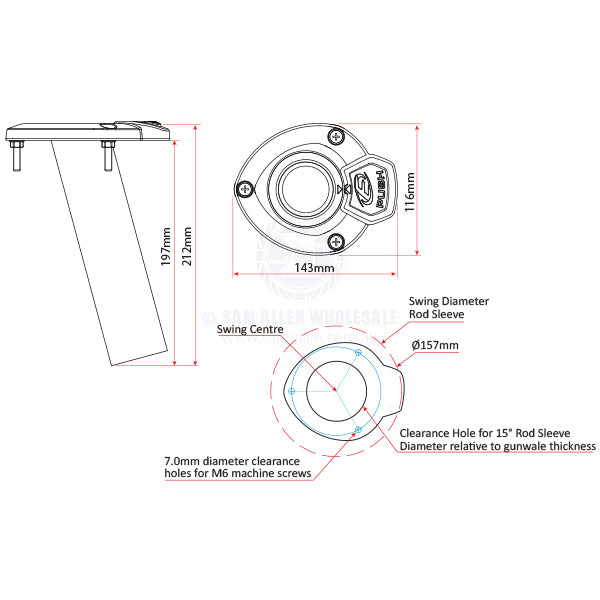

Specifications

Part No.	CMW-491214
Type	S/S
Shaft Angle	15°
Flange (W x L)	116mm x 143mm
Overall Depth	212mm
Shaft Depth	197mm
Shaft O.D.	51mm
Shaft I.D.	40mm
Sleeve Swing Dia.	157mm
Mount Type	M6 c/s
Unit Qty	1
