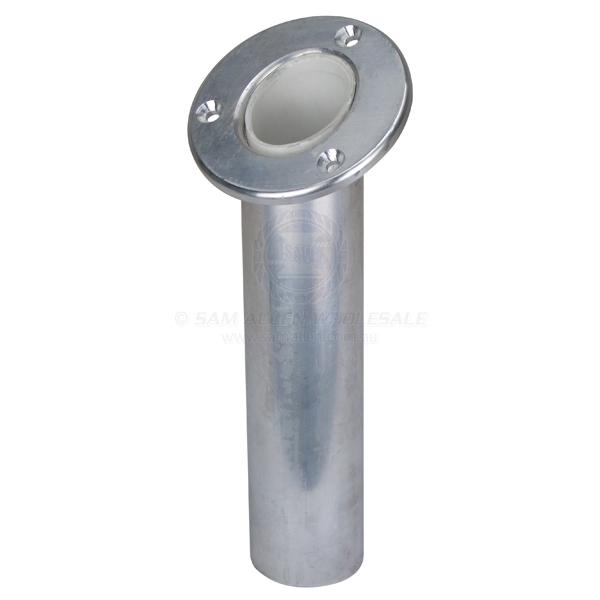

ROD HOLDERS - BOLT ON - ALLOY

ROD HOLDERS - BOLT ON - ALLOY

$42.00 AUD
$42.00 AUD
Sale Sold out
SPECIFICATIONS (Click Part No. for More Details / Guides / Documents)


Part No. 49429
Shaft Angle 30°
Depth 195mm
Head Dia. 90mm
Shaft O.D. 51mm
Shaft I.D. 39mm
Unit Qty 1
Note • Extruded tube welded to 6mm plate top.
• Can be screwed, bolted, riveted or welded.

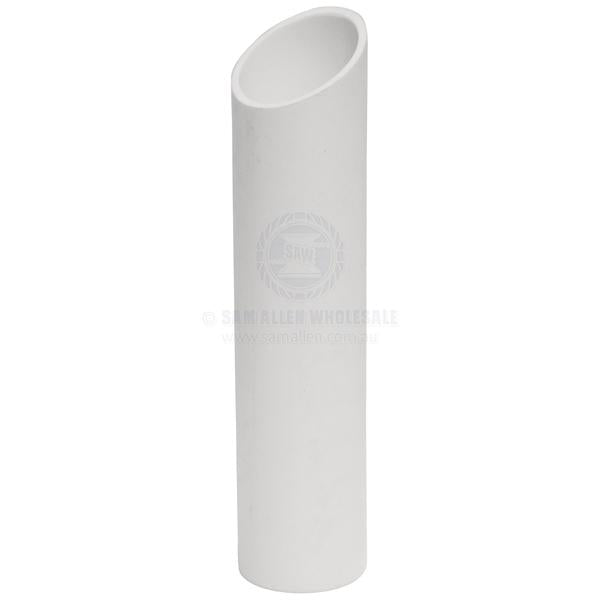

• Includes PVC liner for rod protection.

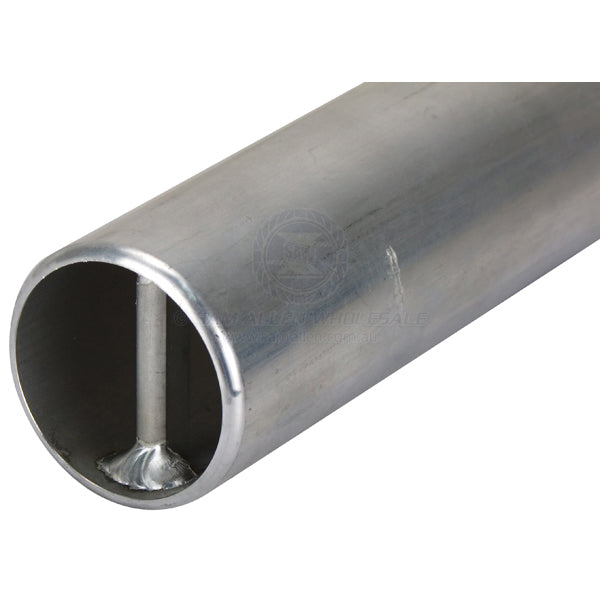

• Welded 6mm gimbal pin.
• Wall thickness 3mm.
• 5mm countersunk fastening holes.
• Oval cutout 72mm x 64mm.
