Overview

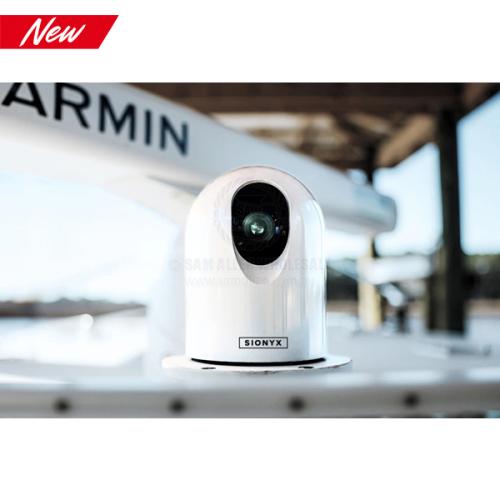

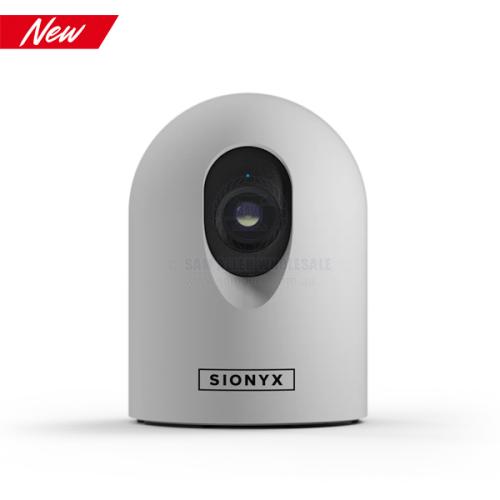

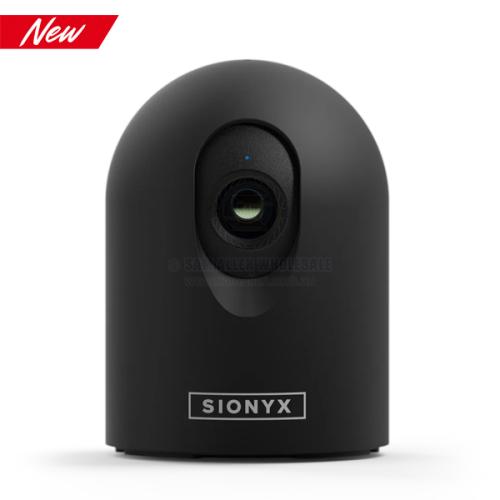

The SIONYX Nightwave Digital Camera is a professional‑grade ultra low‑light marine imaging system designed for night navigation, offshore fishing, bar crossings, and commercial marine operations. With true colour night‑vision performance down to moonless starlight (<0.001 lux), Nightwave delivers exceptional clarity and situational awareness in the darkest conditions.

Built with a rugged IP67 housing, wide field of view, and multiple mounting options, Nightwave is trusted by boat builders, commercial operators, and recreational skippers across Australia. Coffs Metal Works integrates Nightwave into marine fit‑outs and offers it for public sale due to its proven reliability and performance.

Key Features

• Ultra low‑light performance: moonless starlight <0.001 lux
• Detection range:
• Man‑sized object: up to 300m (984ft)
• Marine vessel: up to 4.02km (2.5 miles)
• 1280 × 1024 @ 30Hz (XQE1350 BSI CMOS sensor)
• 16mm F/1.4 high‑performance lens
• 44° horizontal field of view
• Fixed focus: 10m → infinity
• Visible spectrum: 400–1200nm
• Auto day/night filter
• H.264 video output:
• Main: 1280 × 1024 @ 30fps
• Sub: 640 × 512 @ 30fps
• Adjustable image settings (brightness, contrast, HDR, etc.)
• WiFi + Bluetooth (iOS & Android app)
• PoE power: 37–57 VDC (typical 48V)
• Low power consumption: 5W nominal
• Approx. 5m pre‑wired cable
• UV‑resistant polycarbonate housing
• Multiple mounting options

• Kit Includes
• Nightwave Ultra Low‑Light Marine Camera
• Pre‑wired cable (approx. 5m)
• Mounting hardware
• Heat shrink connectors & tubing
• 10A fuse & fuse holder
• Drill hole position sticker
• Mounting template
• User manual
• Specifications
• Sensor: XQE1350 BSI CMOS
• Resolution: 1280 × 1024 (main), 640 × 512 (sub)
• Frame Rate: 30Hz
• Lens: 16mm F/1.4
• Field of View: 44° horizontal
• Focus Range: 10m → infinity
• Spectrum: 400–1200nm
• Video Output: H.264 digital
• Connectivity: WiFi, Bluetooth
• Power: PoE (37–57 VDC)
• Power Draw: 5W nominal
• Cable: 5m pre‑wired
• Housing: UV‑resistant polycarbonate
• Protection Rating: IP67
•

• Ideal For
• Night navigation
• Offshore fishing
• Bar crossings
• Search & rescue
• Commercial vessels
• Recreational boats
• CMW custom marine fit‑outs
