Coffs Metal Works

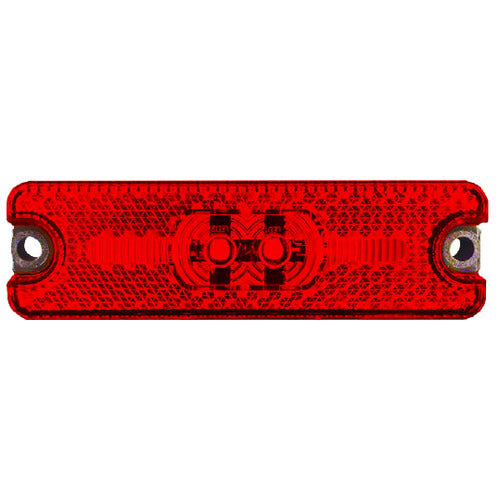

SM70 Series Red Lens Rear LED Marker
SM70 Series Red Lens Rear LED Marker
Regular price
$16.50 AUD
Regular price
Sale price
$16.50 AUD
Quantity
Couldn't load pickup availability
Description

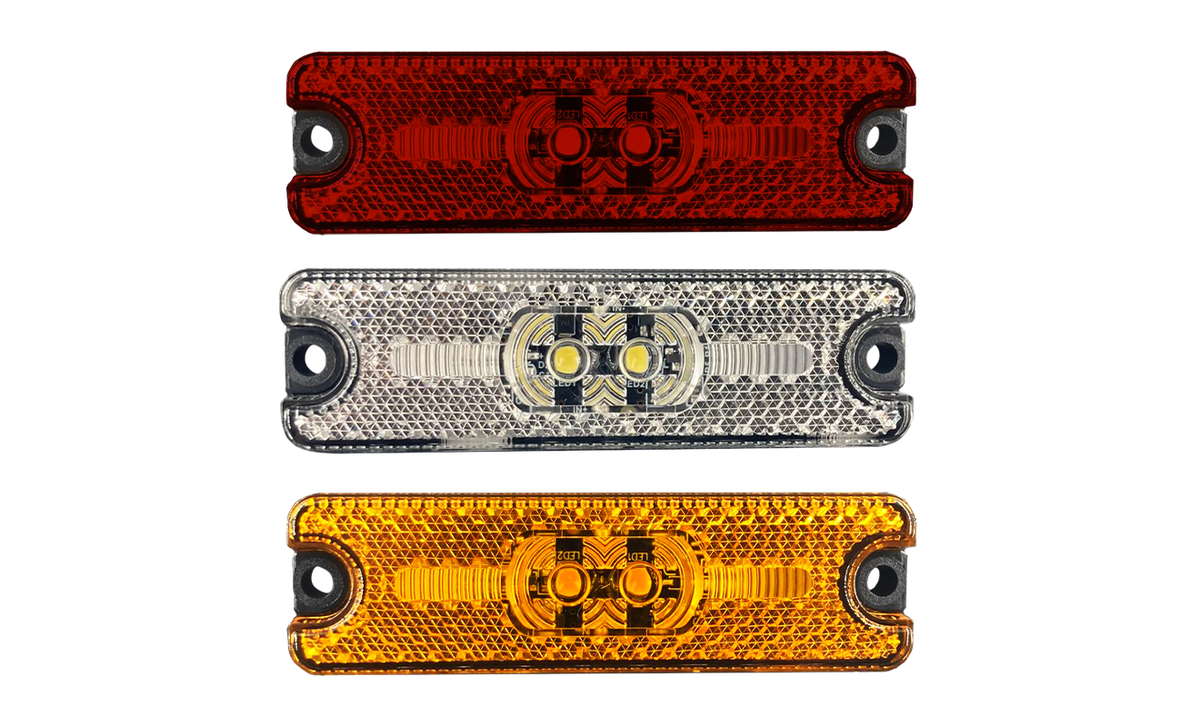

The Slimline SM70 Series offers a full-function LED marker solution with style and convenience. This 13mm low profile marker series features integrated ADR-compliant retro reflectors constructed from virtually unbreakable polycarbonate lenses. With easy surface mount and common 80mm C-C hole fitting dimensions, these markers are excellent options for replacement or quick installation. Available in Amber, Red, and White for front, rea,r and side placement, the SM70 series is well suited to Caravan and RV applications as well as light trucks and trailers.
Features
- Integrated Reflector
- Low Profile Design
- Fits common applications
- All in one solution
Specifications
| Voltage: | 9-33V |
| Power: | 0.8W |
| Mounting: | Surface Mount |
| Environmental: | IP67 |
| CTA: | |
| SM70ALED | CTA-060902 |
| FM70CLED | CTA-060901 |
| RM70RLED | CTA-060900 |
Parts List
| CMW-SM70ALED | Clear LED Front Clearance Lamp with Reflectors (Bulk) |
| CMW-FM70CLED | Amber LED Side Marker Lamp with Reflectors (Bulk) |
| CMW-RM70RLED | Red LED Rear Marker Lamp with Reflectors (Bulk) |
