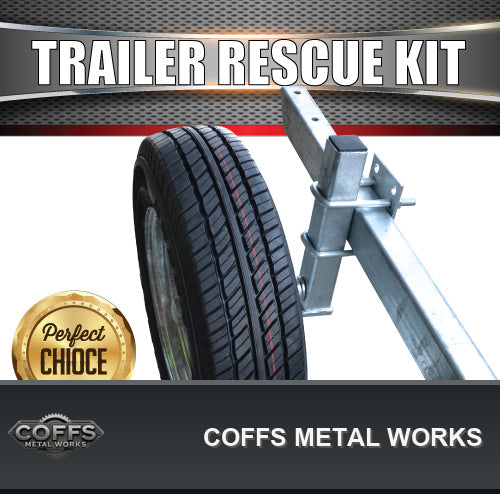

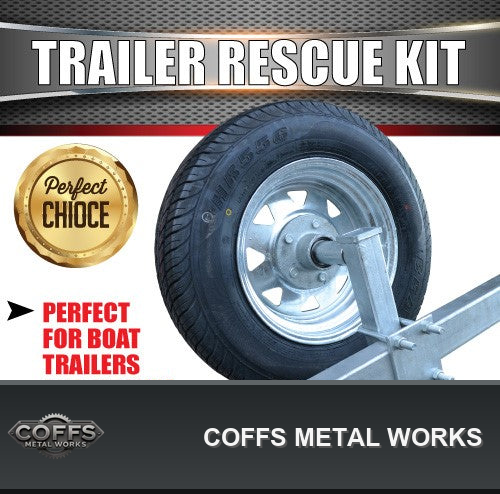

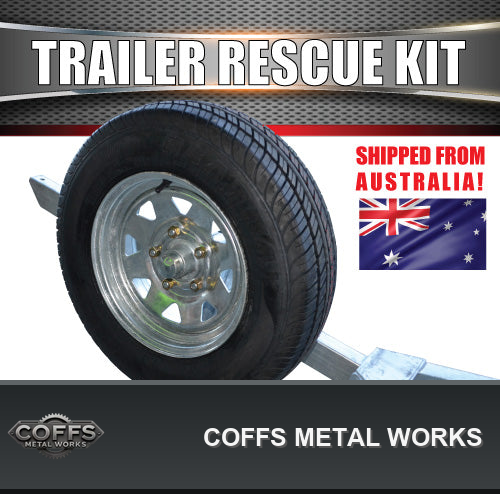

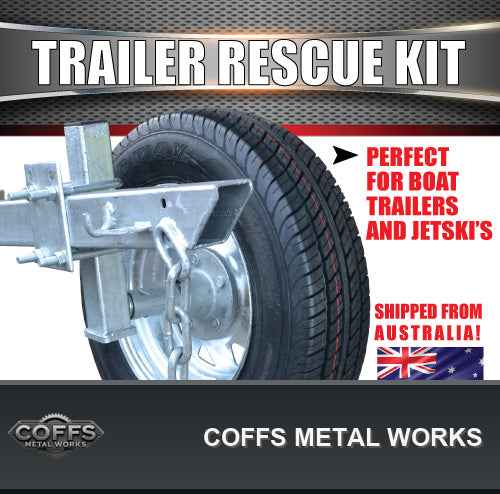

Trailer Rescue Kit , Spare Wheel, 155R13C Tyre & Holder inc hub & S/L bearings

Trailer Rescue Kit including hub, bearing kit & brand new 13" galvanised steel wheel & 155R13L/T tyre
S/L Stub (suited for ford bearings)
available in Ford and Holden HT


How Does The Rescue Kit Work?
The Coffs Metal Works Rescue Kit gives a combination of a spare wheel holder, spare hub or disc with pre greased bearing kit (should a bearing collapse or fail) or a very handy dolly or jockey wheel using your spare tyre across sand or soft grounds.

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)


IN THIS KIT:

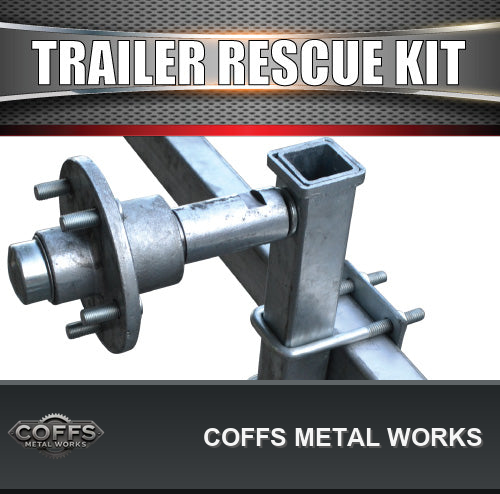

1X GLAVANISED 45MM STUB AXLE INC CASTLE NUT AND SPRING PIN
1X GALVANISED SPARE WHEEL STEM
2X GALVANISED U BOLT AND SUPPORT PLATE
1X GALVANISED LAZY HUB INC S/L BEARING KIT
ALL NUTS AND WASHERS SUPPLIED
AVAILABE IN FORD OR HT HOLDEN

BEARING KIT INCLUDES
1XOUTER BEARINGS ID:22MM (L12710)
1X INNER BEARINGS ID:34.9MM (L68149)
1X OUTER BEARING CUPS (already inserted)
1X INNER BEARING CUPS (already inserted)
1X SLIMLINE MARINE REAR SEALS
1X DUST CAPS

1x 13x4.5 5 STUD FORD or HT PATTERN HOT DIP GALVANISED BOAT TRAILER WHEEL
FITTED WITH BRAND NEW 155R13L/T 8PLY TYRE
WHEEL & TYRE RATED TO 600KG EACH
ROLLING DIAMETER: 578MM


HOW DO I KNOW WHICH STUD PATTERN I HAVE?
MEASURE FROM CENTRE OF ONE STUD TO THE NEXT STUD
64MM = HT HOLDEN
68MM = FORD
70MM = HQ

Kit Does Not Come Assembled

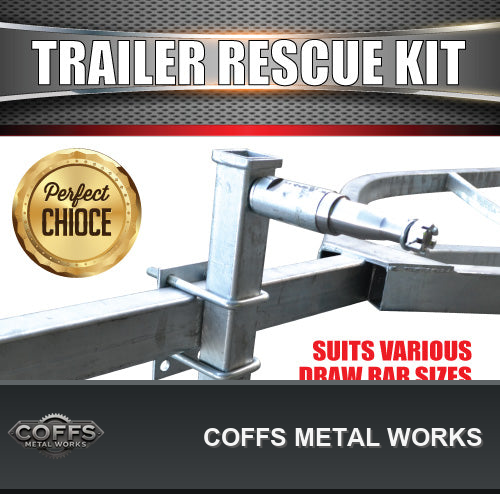

Can be mounted in various positions including Draw Bar, A Frame and Winch posts

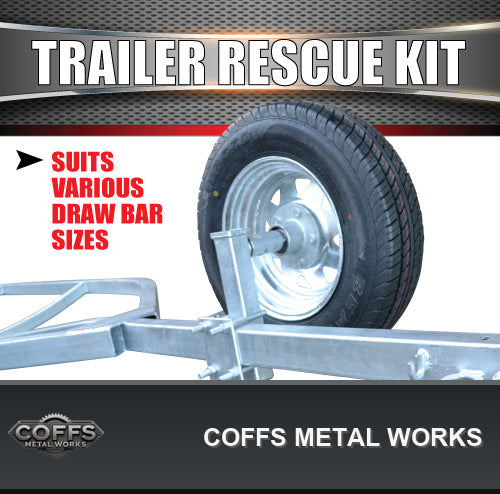

Can be suited for 50x50, 75x50, 100x50 and 80x80mm RHS
koyo Japanese Bearings Available $25

On ordering please supply your stud pattern
