x4 405mm x 150 newton gas struts. European Seals

x4 405 x 150 NEWTON GAS STRUTS
these struts are generally used under tool box lids and caravan shutters

lifts approx 15kg per pair
European seals

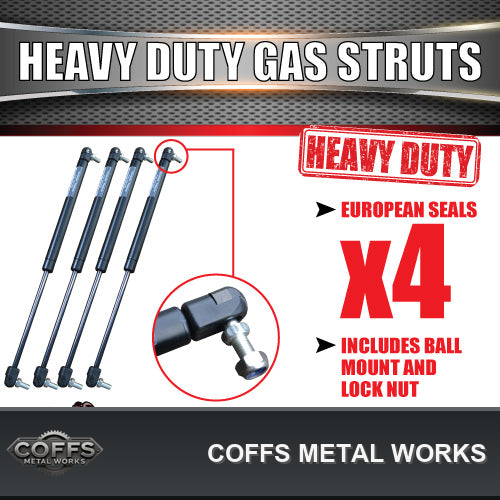

4x 150 newton x 405mm open shaft gas struts
shaft width 8mm
ball diameter 10mm

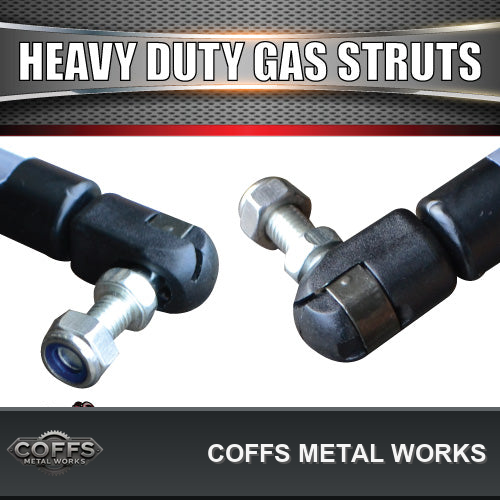

comes with mount ball bolts and nyloc nuts

STROKE LENGTH (A) MM = 165
EXTENDED LENGTH (B) MM = 405
PISTON ROD (D1) MM = 8
PISTON CYLINDER (D2) MM = 18
FORCE RANGE NEWTON = 150

STRUT BRACKETS AVAILABLE IN OUR STORE

What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
