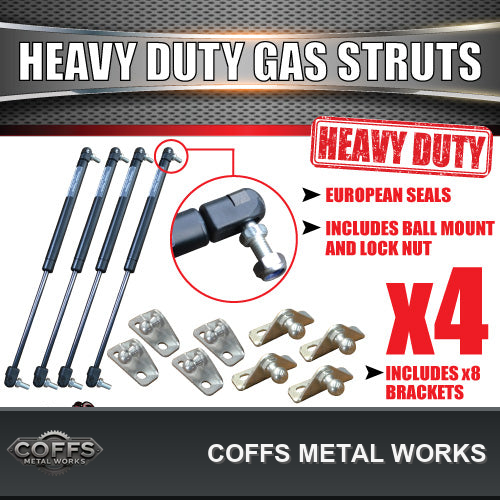

X4 505mm x 300 NEWTON GAS STRUTS
x8 13MM BALL GAS STRUT BRACKETS

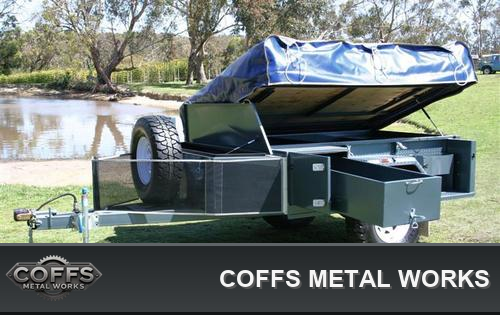

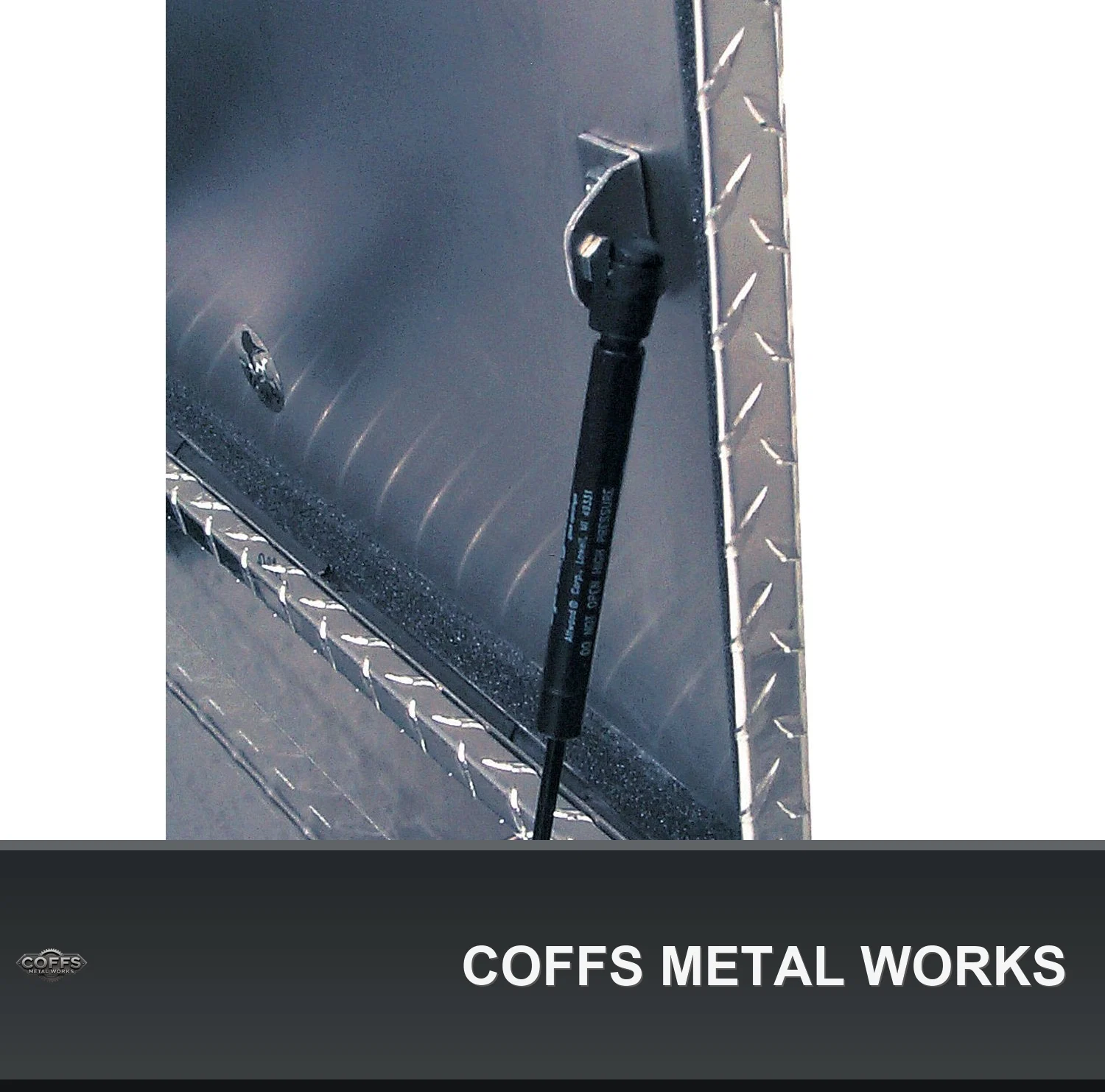

these struts are generally used under on tradesman trailer side and rear doors that are framed
lifts approx 30kg per pair
European seals
4x 300 newton x 505mm open shaft gas struts

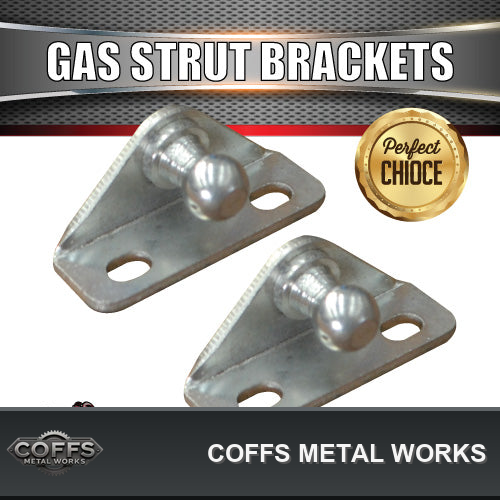

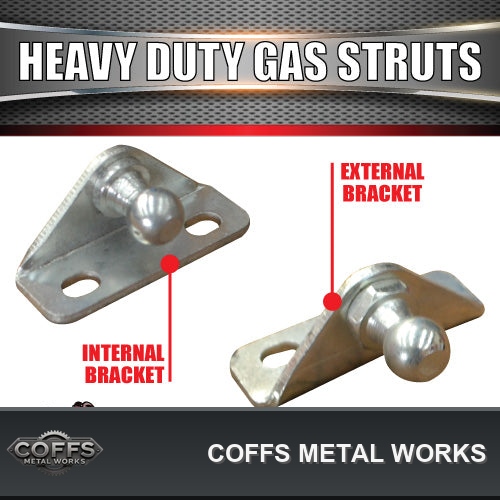

4x internal mount brackets (let us know on ordering if you require all internal or all external brackets)

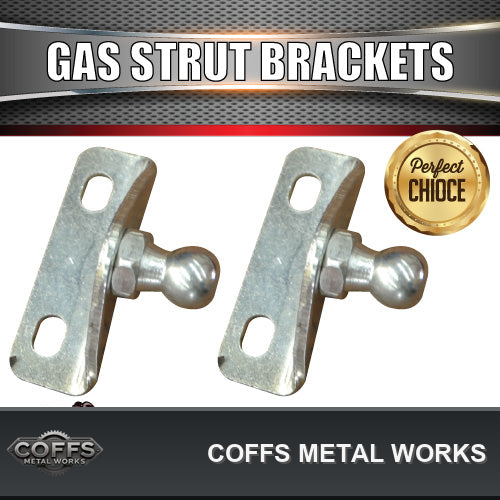

4x external mount brackets (let us know on ordering if you require all internal or all external brackets)
shaft width 8mm
ball diameter 13mm

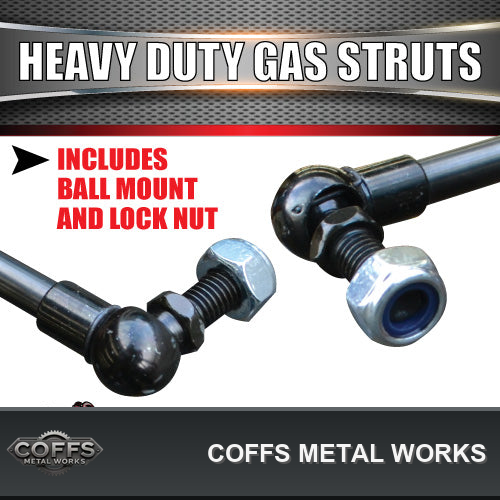

comes with mount ball bolts and nyloc nuts
STROKE LENGTH (A) MM = 215
EXTENDED LENGTH (B) MM = 505
PISTON ROD (D1) MM = 8
PISTON CYLINDER (D2) MM = 18
FORCE RANGE NEWTON = 300
What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
