x4 Ford Parallel 68149 Trailer Wheel Bearing Kits With Oil Seal & Dust Cap 1600kg
x4 Ford Parallel 68149 Trailer Wheel Bearing Kits With Oil Seal & Dust Cap 1600kg
Couldn't load pickup availability
Parallel Ford Trailer Wheel Bearing Kits – Four Hub Service Kit (1600kg)
Service four trailer hubs with confidence using this Parallel Ford Trailer Wheel Bearing Kit. Designed for 1600kg Parallel trailer hub assemblies, this complete kit contains everything required to service four trailer hubs (two axles). Ideal for routine maintenance, repairs or complete axle servicing, it provides all the essential components needed to keep your trailer towing safely and reliably.
The kit includes 4 × L68149 inner bearings, 4 × L68149 outer bearings, matching L68110 bearing cups, 4 × S/L rear oil seals (492015) and 4 × 63mm parallel dust caps. The parallel bearing configuration uses the same bearing size on both the inner and outer positions, providing excellent load carrying capability, smooth wheel rotation and dependable towing performance. This kit generally suits 50mm and selected 45mm trailer axles.
Suitable for caravans, camper trailers, boat trailers, horse floats, box trailers and utility trailers fitted with 1600kg Parallel Ford hubs, this complete four hub kit simplifies servicing while helping maximise bearing life and towing reliability.
Features
- Complete bearing kit for servicing four trailer hubs
- Parallel bearing configuration
- Suitable for 1600kg trailer hub assemblies
- Uses L68149 bearings for both inner and outer positions
- Matching L68110 bearing cups included
- S/L rear oil seals included
- 63mm parallel dust caps included
- Ideal for servicing two complete trailer axles
- Smooth, reliable wheel operation
- Everything required for a complete four hub rebuild
Specifications
Bearing Kit
- Application: Parallel Ford Trailer Hubs (1600kg)
- Quantity: Complete Kit for 4 Hubs
- Inner Bearings: 4 × L68149 (34.9mm ID × 59.10mm OD)
- Outer Bearings: 4 × L68149 (34.9mm ID × 59.10mm OD)
- Inner Bearing Cups: 4 × L68110
- Outer Bearing Cups: 4 × L68110
- Rear Oil Seals: 4 × 492015 (43.9mm ID × 59.10mm OD)
- Dust Caps: 4 × 63mm Parallel
- Suits Axles: 50mm and Selected 45mm
- Capacity: 1600kg Parallel Hub Assembly

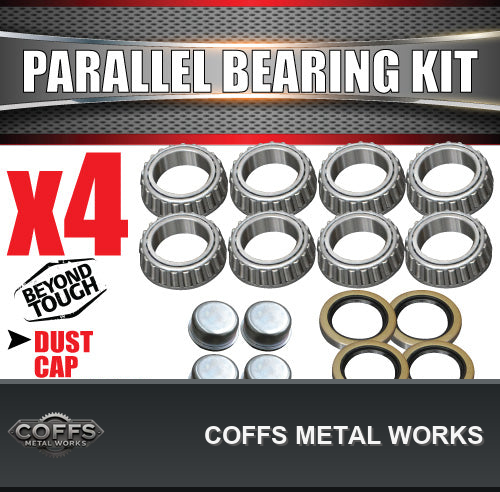

Package Includes
- 4 × L68149 Inner Bearings
- 4 × L68149 Outer Bearings
- 4 × L68110 Inner Bearing Cups
- 4 × L68110 Outer Bearing Cups
- 4 × S/L Rear Oil Seals (492015)
- 4 × 63mm Parallel Dust Caps
Always replace wheel bearings, bearing cups and oil seals as a complete set when servicing trailer hubs. Thoroughly clean the hub, inspect the spindle for wear or damage, and pack all bearings with premium high-temperature wheel bearing grease before installation. Please verify your existing bearing numbers, hub type and axle dimensions before ordering to ensure compatibility with your trailer.
